Product description

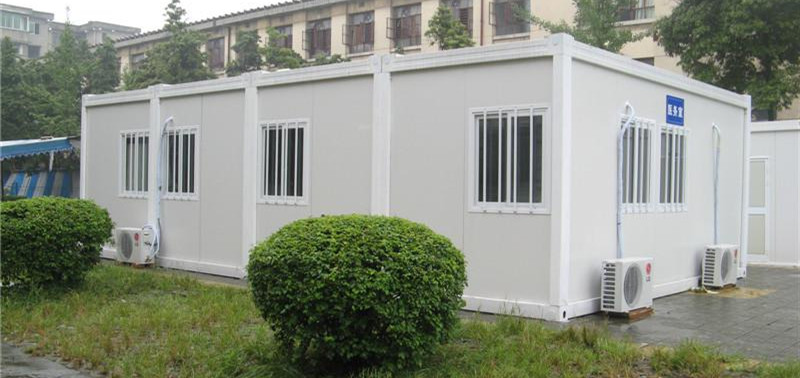

HYSUN’ s standard container for various purposes is suitable for international container transport.

Product Description

It is of appropriate external dimensions and has connections for lifting and fixing or compounding. The container is designed as a light construction consisting of floor and roof frames and corner profiles.
The construction enables compounding of individual containers in longitudinal and transverse directions without limits.

HY-A
HY-A

Specification

Wainscots light insulation panels
Material cold formed steel profiles in a thickness of 2 to 4 mm
CEILING Permitted loading 1.00 KN/m²
CEILING Coefficient of thermal conductivity k= 0.41 W/m²K
Voltage 220/380 V, 50 Hz

Size Information (ONLY ONE UNIT)

External size L 6055 mm*W 2435 mm*H 2700 mm
Internal size L 5855 mm*W 2235 mm*H 2500 mm

Detailed Images

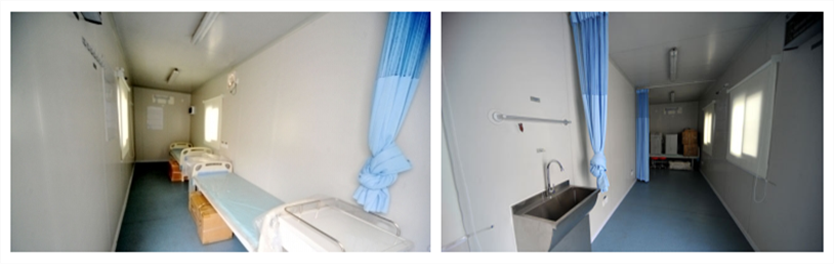

inside inside
inside
item
item

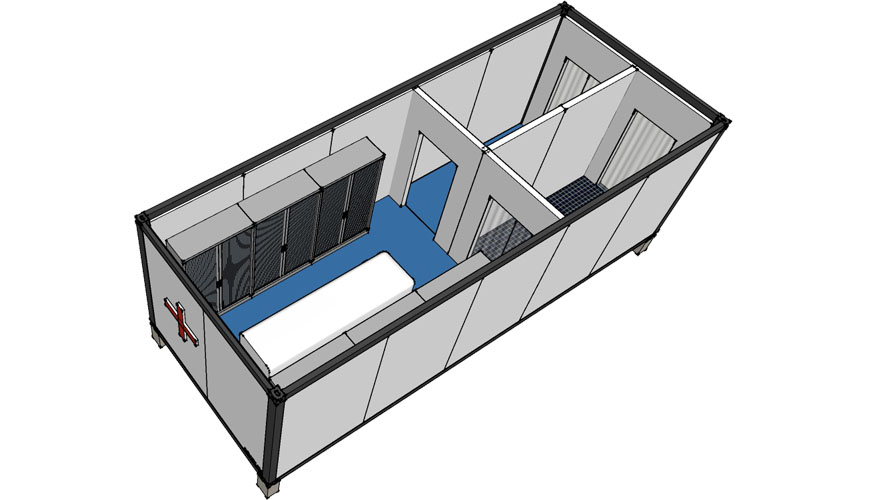

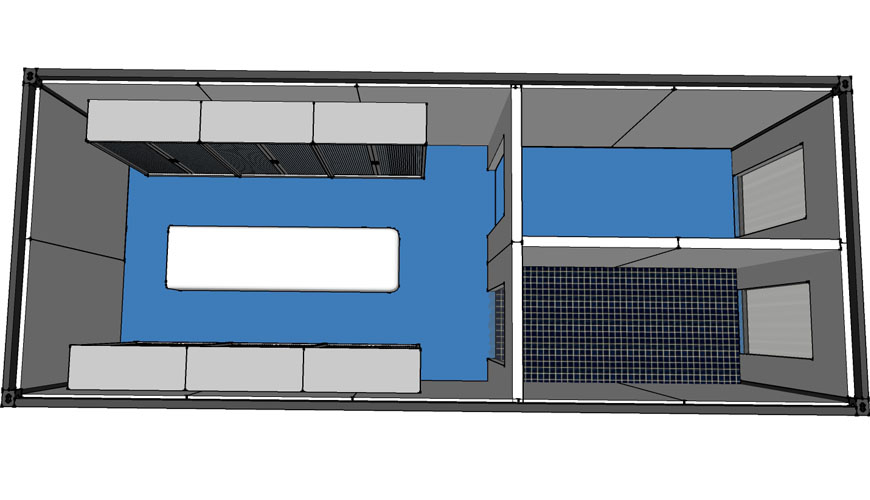

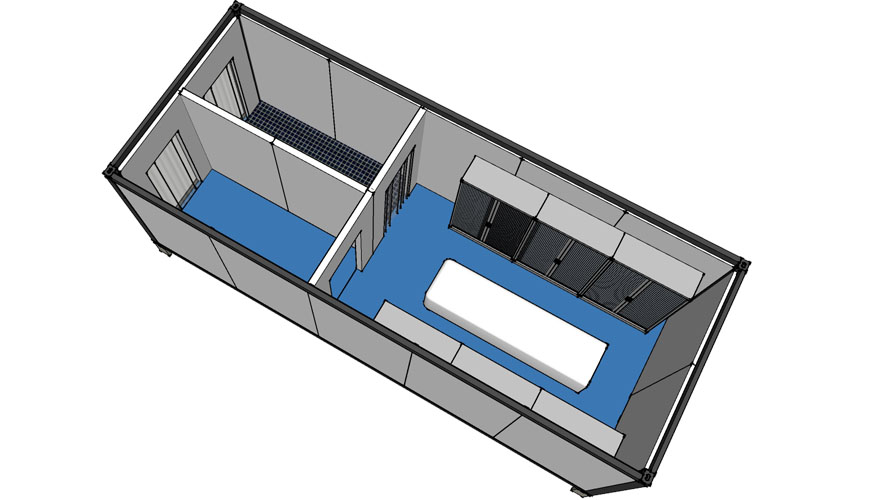

Layout

HY-AE
HY-AE

The disinfectant channel and changing room– Container E
Basic unit: 20ft container*1
1. 2 disinfectant channel
2. 1 changing room
3. Electricity: 3 sockets, 3 light, 1 socket for A/C On
option items:
1. disinfectant machine:2 set
2. Cloth cabinet:6 set
3. Long chair:1 pc
4. Hooks: several

Our Advantages

Modular: All material have been ready in the factory. 90% work ready.
Fast: 3-4 hours for installation by 4 workers.
Green: None construction waste caused. Can use several times Free
space: can combine to big space in vertical and horizontal, also available in load to 3 layers building
And you are free to :
Choose the function units
Decide the Q’ty of function units
Fast to get a in-patient department
Tell me your demand, we will design for you.

Packing&Load

HY-A-loadHY-A-load
Load: 4 units/20GP, 6 units/40HQ
