Product description

1、Approval by ABS, BV, GL, CCS. Meet the requirement of ISO, UIC, TIR, CSC, TCT
2、Valid to arrange one-way transportation for SOC containers to the most port.

Product Description

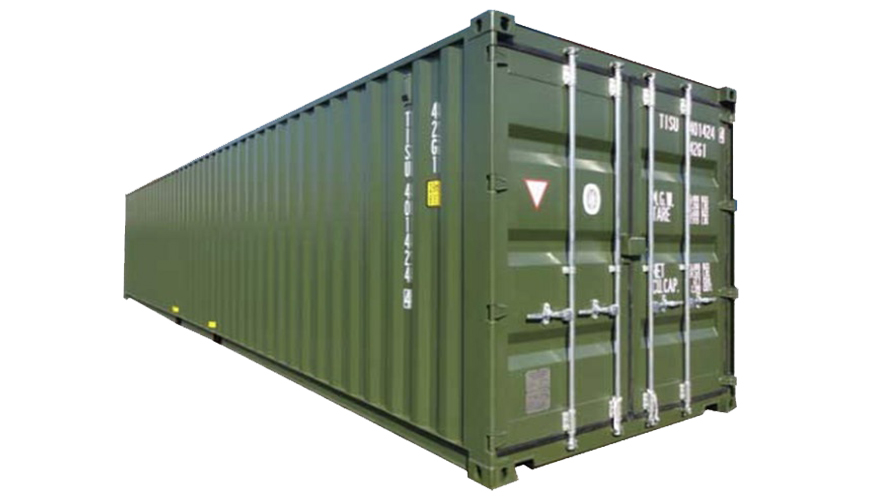

Product Name ISO shipping container
Max Gross Weight 32500 KGS
Brand Hysun
Colour Customized
Tare Weight 3650 KGS
Place of Product Shanghai,China
inner capacity 67.7 CBM
Modes of packing SOC(shipper own container)
External dimensions 12192x2438x2591mm
internal dimensions 12032x2352X2393mm

Highlight

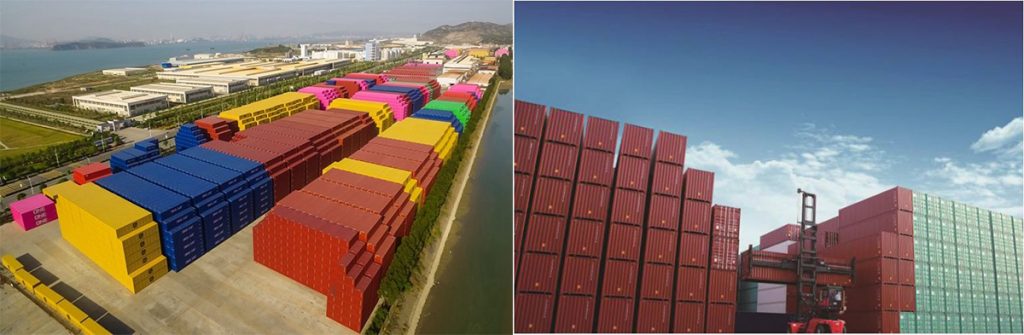

Output
Output
Every 3 mins to get a container from automatic production line.
Dry Cargo Container: 180,000 TEU per year
Special & Non-standard Container: 3,000 units per year

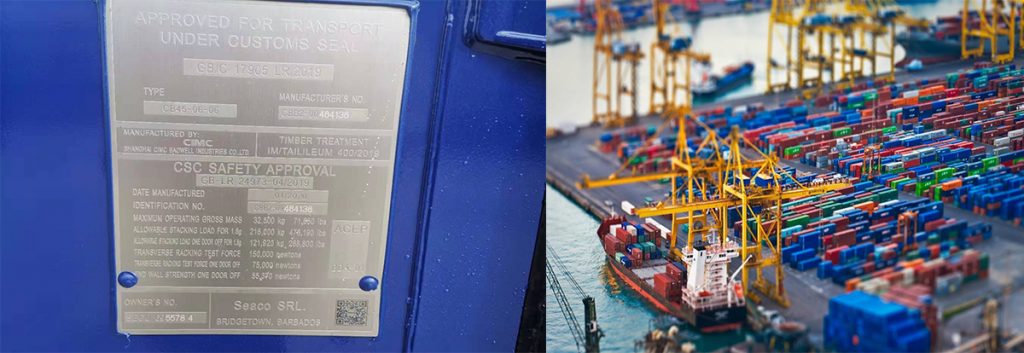

CSC SAFETY APPROVAL
CSC SAFETY APPROVAL
Valid to arrange one-way transportation for SOC containers to the most port.

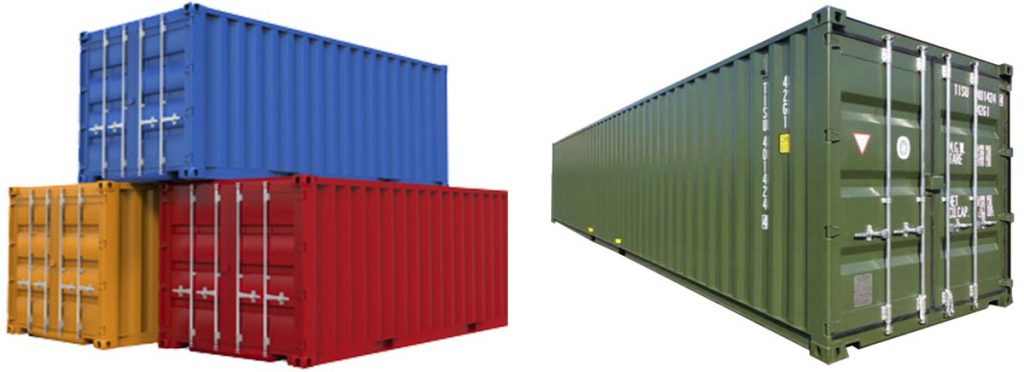

Color
Color
Give us the Panton No. Any color for you.

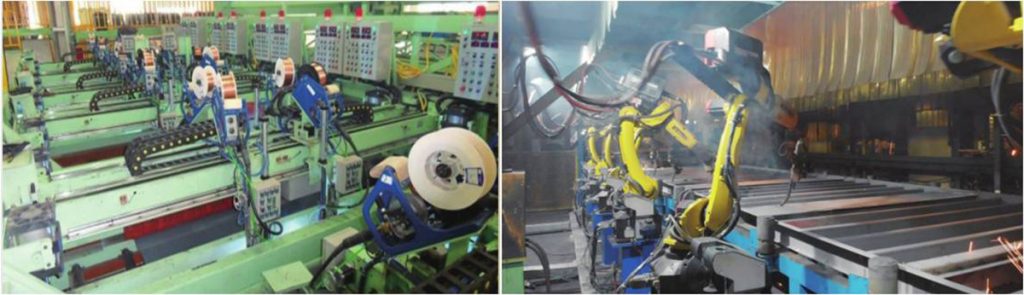

Production line
Production line
Our factory promotes lean production activities in an all-round way, opening the first step of forklift-free transportation and closing the risk of air and ground transportation injury in the workshop, also creating a series of lean improvement achievements such as streamlined production of container steel parts, etc. It is known as a “cost-free, cost-effective” model factory for lean production
Logo or slogan
Logo or slogan
Give us the hard copy and pay the lowest from USD60.00 for a container.

Specification

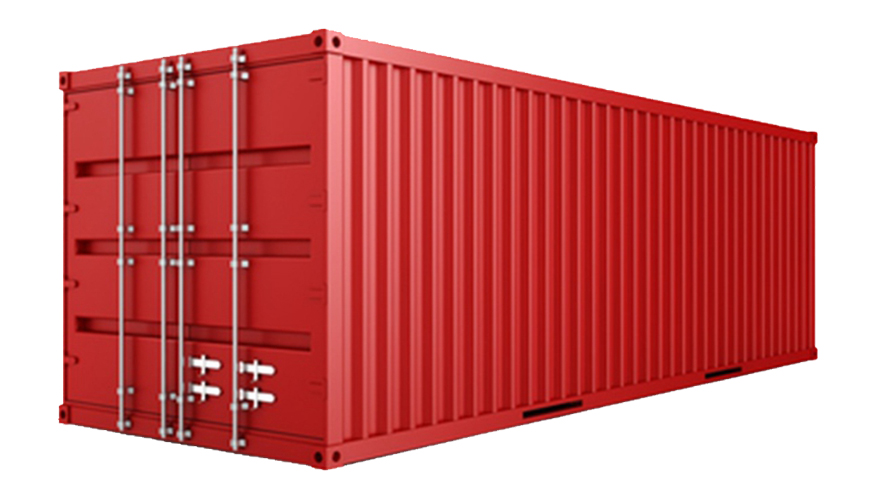

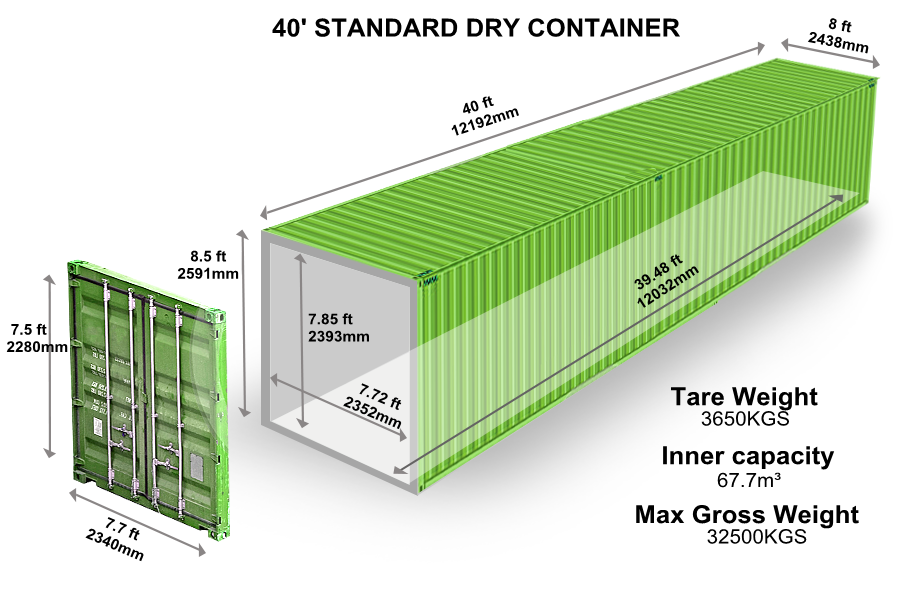

40’ STANDARD DRY CONTAINER
40’ STANDARD DRY CONTAINER

Maritime Container Material List

  1. Wall panel-long side: Steel: CORTEN A, thickness: 1.6mm+2.0mm
  2. Wall panel-short side: Steel: CORTEN A, thickness: 2.0mm
  3. Door Panel: Steel: CORTEN A, thickness: 2.0mm
  4. Horizontal beam for the door: Steel: CORTEN A, thickness: 3.0mm for standard container and 4.0mm for high cube container
  5. Lockset: 4 set container lock bar
  6. Corner: ISO standard corner, 178x162x118mm
  7. Floor Beam for long side: Steel: CORTEN A, thickness: 4.0mm
  8. Floor Beam for short side: Steel: CORTEN A, thickness: 4.5mm
  9. Floor: 28mm, intensity: 7260kg
  10. Column: Steel: CORTEN A, thickness: 6.0mm
  11. Inner column for back side: Steel: SM50YA + channel steel 13x40x12
  12. Top Beam: Steel: CORTEN A, thickness: 4.0mm
  13. Top panel: Steel: CORTEN A, thickness: 2.0mm
  14. Paint: Inside wall paint thickness: 75µ Outside Wall paint thickness: 30+40+40=110u
    Outside Roof paint thickness: 30+40+50=120u Chassis paint thickness: 30+200=230u

Certificate

Certificate
Certificate
