Product description

1、 Offer side open container, tunnel container, and customized design container
2、 Offer side open container, tunnel container, and customized design container

Product Description

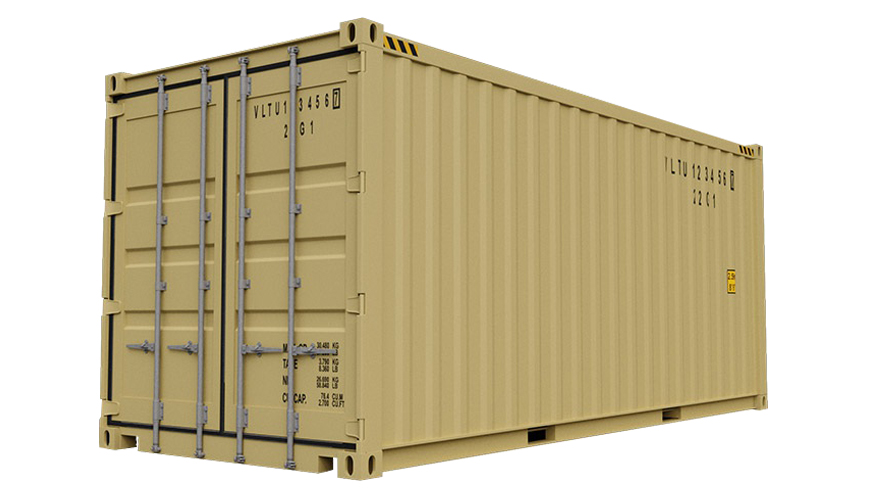

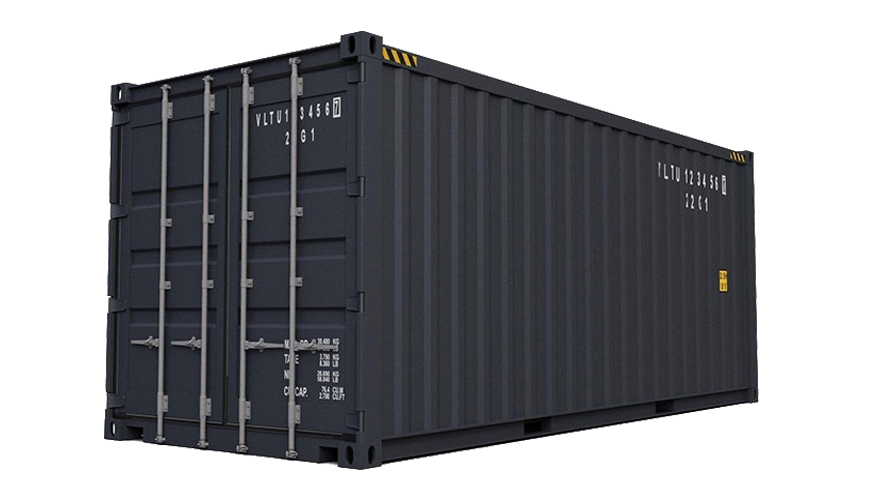

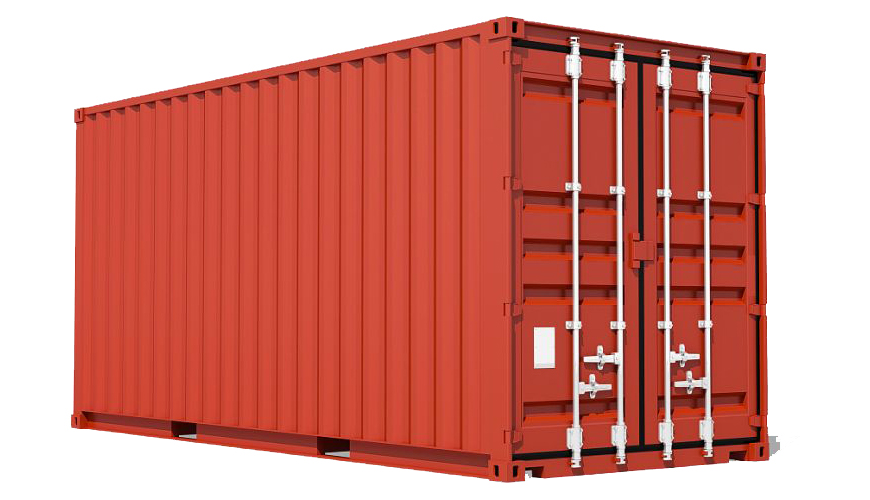

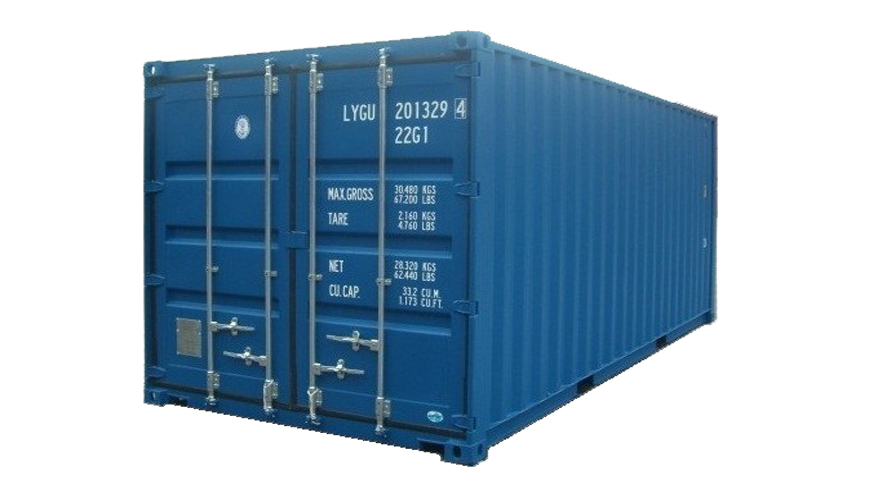

20' HIGH CUBE DRY CONTAINER
20′ HIGH CUBE DRY CONTAINER
External Dimensions (L x W x H)mm 6058x2438x2896
Internal Dimensions (L x W x H)mm 5896x2352x2698
Door Dimensions (L x H)mm 2340×2585
Inner capacity 37.4 CBM
Tare Weight 2250 KGS
Max Gross Weight 30480 KGS

Maritime Container Material List

  1. Corner: ISO standard corner, 178x162x118mm
  2. Floor Beam for short side: Steel: CORTEN A, thickness: 4.5mm
  3. Floor Beam for long side: Steel: CORTEN A, thickness: 4.0mm
  4. Floor: 28mm, intensity: 7260kg
  5. Column: Steel: CORTEN A, thickness: 6.0mm
  6. Inner column for the backside: Steel: SM50YA + channel steel 13x40x12
  7. Wall panel-long side: Steel: CORTEN A, thickness: 1.6mm+2.0mm
  8. Wall panel-short side: Steel: CORTEN A, thickness: 2.0mm
  9. Door Panel: Steel: CORTEN A, thickness: 2.0mm
  10. Horizontal beam for the door: Steel: CORTEN A, thickness: 3.0mm for standard container and 4.0mm for high cube container
  11. Lockset: 4 set container lock bar
  12. Top Beam: Steel: CORTEN A, thickness: 4.0mm
  13. Top panel: Steel: CORTEN A, thickness: 2.0mm
  14. Paint: The paint system is guaranteed against corrosion and/or paint failure for a period of five (5) years.
    Inside wall paint thickness: 75µ Outside Wall paint thickness: 30+40+40=110u
    Outside Roof paint thickness: 30+40+50=120u Chassis paint thickness: 30+200=230u

Applications or special features

1. waterproof and safe.
2. convenient for loading, lifting, moving.
3. It can be made as to the workshop, house for the battery group device, oil engine, water treatment equipment, electrical power and so on as the working box ;
4. for the convenient move and save cost, more and more customers try to fix their device, such as the generator, compressor, on a container.
5. can adjust the sizes, structures according to different devices’ requirements.
