Product description
  1. Approval by ABS, BV, GL, CCS. Meet the requirement of ISO, UIC, TIR, CSC, TCT
  2. Customized color and logo

Specification

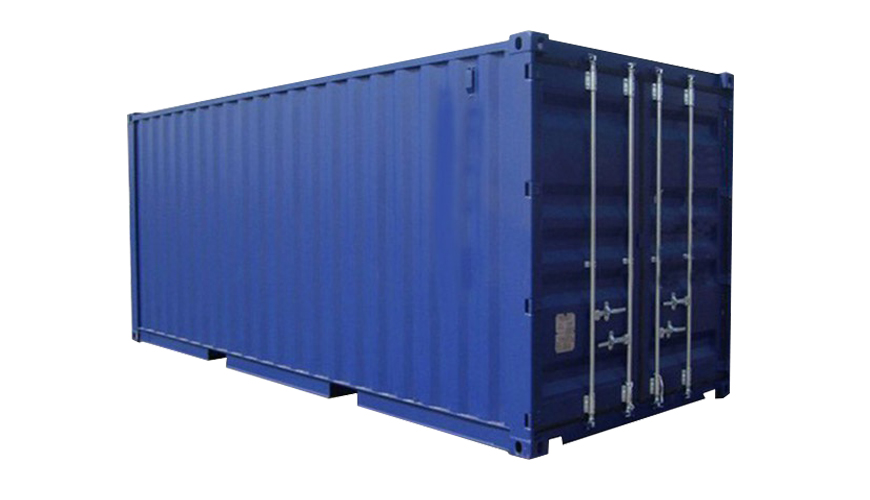

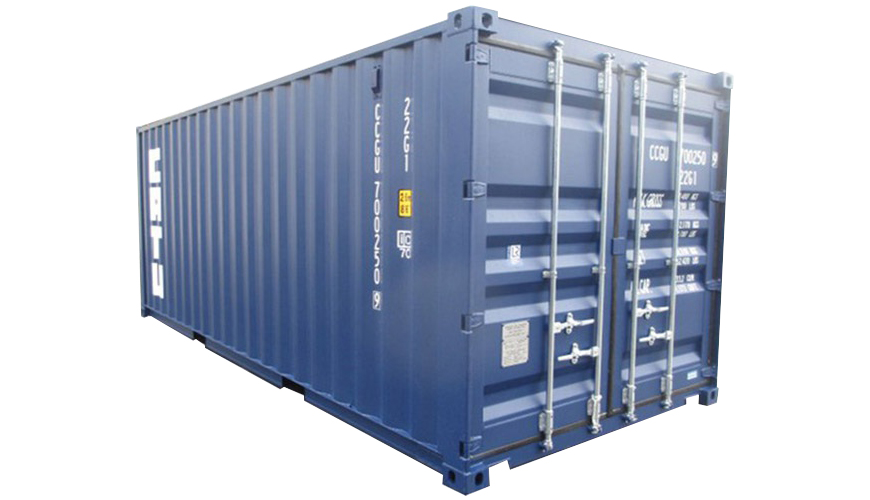

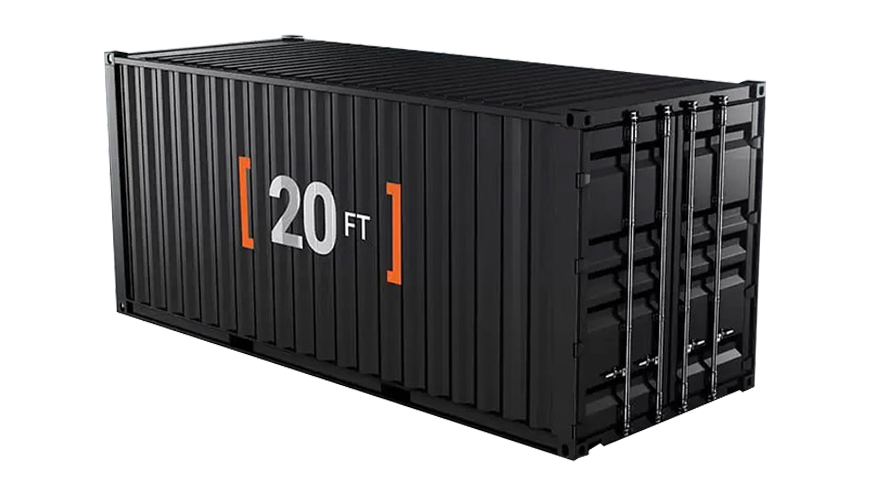

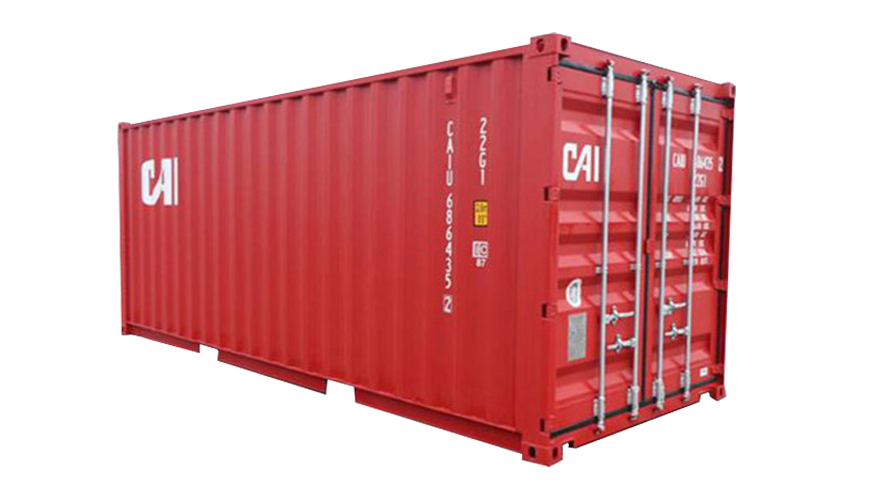

20' STANDARD DRY CONTAINER
20′ STANDARD DRY CONTAINER

Product Description

External Dimensions (L x W x H)mm 6058x2438x2591
Internal Dimensions (L x W x H)mm 5900x2352x2393
Door Dimensions (W x H)mm 2340×2280
Inner capacity 33.2 CBM
Tare Weight 2100 KGS
Max Gross Weight 30480 KGS

Maritime Container Material List

  1. Corner:  ISO standard corner, 178x162x118mm
  2. Floor Beam for long side: Steel: CORTEN A, thickness: 4.0mm
  3. Floor: 28mm, intensity: 7260kg
  4. Floor Beam for short side: Steel: CORTEN A, thickness: 4.5mm
  5. Column: Steel: CORTEN A, thickness: 6.0mm
  6. Wall panel-long side: Steel: CORTEN A, thickness: 1.6mm+2.0mm
  7. Wall panel-short side: Steel: CORTEN A, thickness: 2.0mm
  8. Inner column for backside: Steel: SM50YA + channel steel 13x40x12
  9. Door Panel: Steel: CORTEN A, thickness: 2.0mm
  10. Top Beam: Steel: CORTEN A, thickness: 4.0mm
  11. Top panel: Steel: CORTEN A, thickness: 2.0mm
  12. Horizontal beam for the door: Steel: CORTEN A, thickness: 3.0mm for standard container and 4.0mm for high cube container
  13. Lockset: 4 set container lock bar
  14. Paint: Inside wall paint thickness: 75µ Outside Wall paint thickness: 30+40+40=110u
    Outside Roof paint thickness: 30+40+50=120u Chassis paint thickness: 30+200=230u

Highlight

Production line
Production line
Our factory promotes lean production activities in an all-round way, opening the first step of forklift-free transportation and closing the risk of air and ground transportation injury in the workshop, also creating a series of lean improvement achievements such as streamlined production of container steel parts, etc.… It is known as a “cost-free, cost-effective” model factory for lean production

Logo or slogan
Logo or slogan
Give us the hard copy and pay the lowest from USD60.00 for a container.

Output
Output
Every 3 mins to get a container from the automatic production line.
Dry Cargo Container: 180,000 TEU per year
Special & Non-standard Container: 3,000 units per year

Color
Color
Give us the Panton No. Any color for you.

CSC SAFETY APPROVAL
CSC SAFETY APPROVAL
Valid to arrange one-way transportation for SOC containers to the most port.

Certificate

Certificate
Certificate
