Product description
  1. Every 3 mins to get a container from the automatic production line.
  2. Materials: Main body: Corten-A steel, Floor: 28mm solid Plywood. 5 years warranty.

Product Description

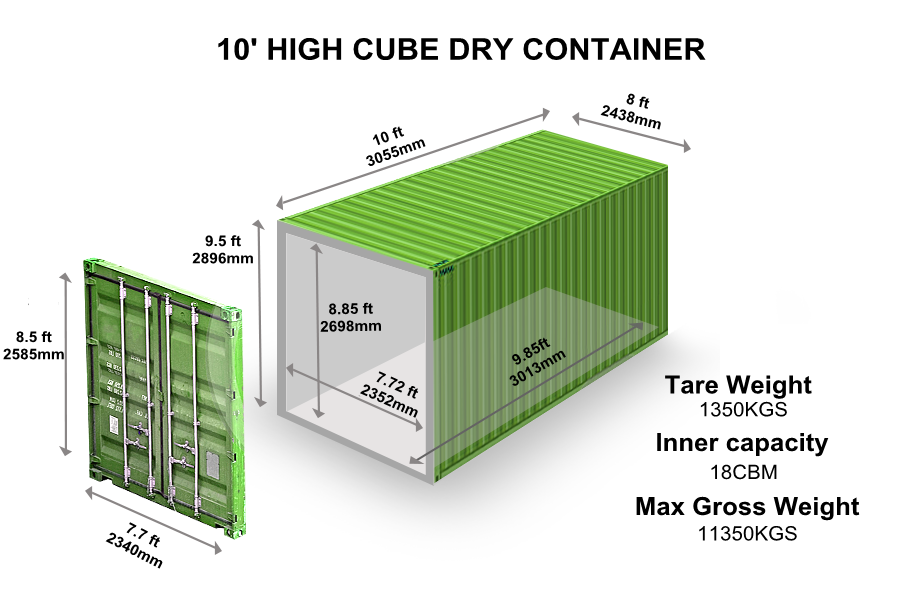

10' HIGH CUBE DRY CONTAINER
10′ HIGH CUBE DRY CONTAINER

External Dimensions (L x W x H)mm 3055x2438x2896
Internal Dimensions (L x W x H)mm 3013x2352x2698
Door Dimensions (L x H)mm 2585×2340
Inner capacity 18 CBM
Tare Weight 1350 KGS
Max Gross Weight 11350 KGS

Applications or special features

  1. It can be made as to the workshop, house for the battery group device, oil engine, water treatment equipment, electrical power and so on as the working box ;
  2. for the convenient move and save cost, more and more customers try to fix their device, such as the generator, compressor, on a container.
  3. waterproof and safe.
  4. convenient for loading, lifting, moving.
  5. can adjust the sizes, structures according to different devices’ requirements.

Maritime Container Material List

  1. Floor Beam for long side: Steel: CORTEN A, thickness: 4.0mm
  2. Floor Beam for short side: Steel: CORTEN A, thickness4.5mm
  3. Floor: 28mm, intensity: 7260kg
  4. Door Panel: Steel: CORTEN A, thickness: 2.0mm
  5. Horizontal beam for the door: Steel: CORTEN A, thickness: 3.0mm for standard container and 4.0mm for high cube container
  6. Wall panel-long side: Steel: CORTEN A, thickness: 1.6mm+2.0mm
  7. Wall panel-short side: Steel: CORTEN A, thickness: 2.0mm
  8. Column:  Steel: CORTEN A, thickness: 6.0mm
  9. Inner column for backside: Steel: SM50YA + channel steel 13x40x12
  10. Corner: ISO standard corner, 178x162x118mm
  11. Top Beam: Steel: CORTEN A, thickness: 4.0mm
  12. Top panel: Steel: CORTEN A, thickness: 2.0mm
  13. Lockset: 4 set container lock bar
  14. Paint: The paint system is guaranteed against corrosion and/or paint failure for a period of five (5) years.
    Inside wall paint thickness: 75µ Outside Wall paint thickness: 30+40+40=110uOutside Roof paint thickness: 30+40+50=120u Chassis paint thickness: 30+200=230u
