Product description
  1. Approval by ABS, BV, GL, CCS. Meet the requirement of ISO, UIC, TIR, CSC, TCT
  2. Materials: Main body: Corten-A steel, Floor: 28mm Plywood. 5 years warranty.

Product Description

External Dimension (L x W x H)mm 3055x2438x2591
Internal Dimensions (L x W x H)mm 3013x2352x2393
Door Dimensions (L x H)mm 2340×2280
Inner capacity 15.95 CBM
Tare Weight 1300 KGS
Max Gross Weight 11300 KGS

Specification

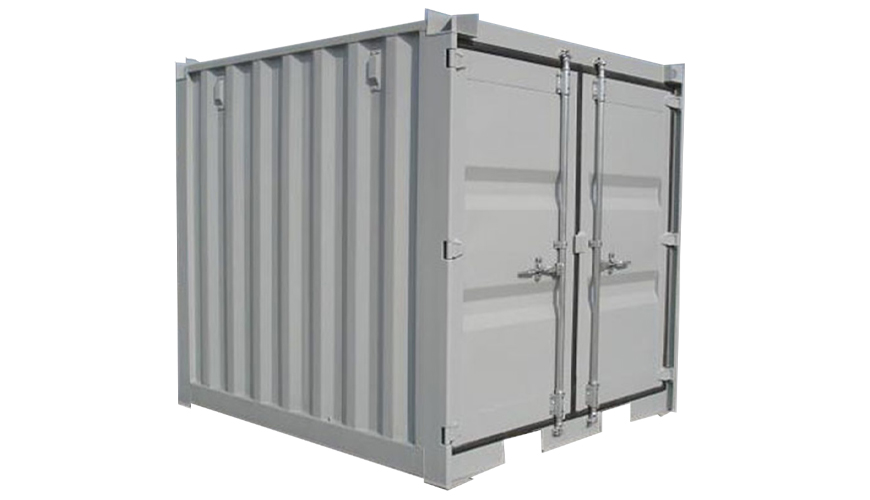

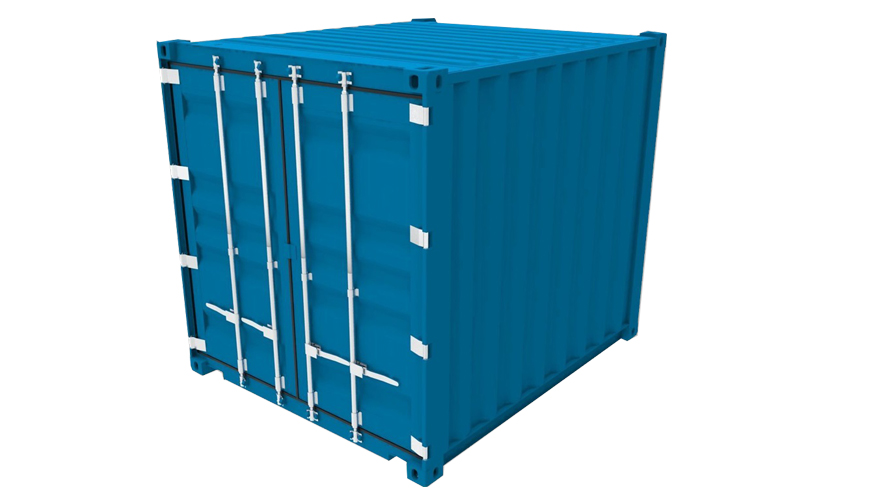

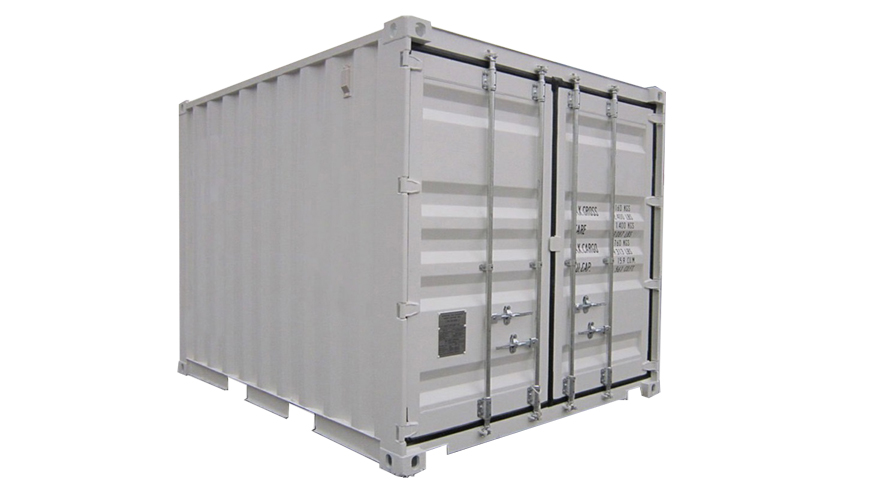

10‘ STANDARD DRY CONTAINER
10‘ STANDARD DRY CONTAINER

Maritime Container Material List

  1. Corner: ISO standard corner, 178x162x118mm
  2.  Floor Beam for long side: Steel: CORTEN A, thickness: 4.0mm
  3. Floor Beam for short side:Steel: CORTEN A, thickness: 4.5mm
  4. Floor:28mm, intensity: 7260kg
  5. Column:Steel: CORTEN A, thickness: 6.0mm
  6. Inner column for back side:Steel: SM50YA + channel steel 13x40x12
  7. Wall panel-long side:Steel: CORTEN A, thickness: 1.6mm+2.0mm
  8. Wall panel-short side:Steel: CORTEN A, thickness: 2.0mm
  9.  Door Panel:  Steel: CORTEN A, thickness: 2.0mm
  10. Horizontal beam for the door: Steel: CORTEN A, thickness: 3.0mm for standard container and 4.0mm for high cube container
  11. Lockset: 4 set container lock bar
  12. Top Beam: Steel: CORTEN A, thickness: 4.0mm
  13.  Top panel: Steel: CORTEN A, thickness: 2.0mm
  14. Paint: Inside wall paint thickness: 75µ Outside Wall paint thickness: 30+40+40=110u Outside Roof paint thickness: 30+40+50=120u Chassis paint thickness: 30+200=230u


Highlight

CSC SAFETY APPROVAL
CSC SAFETY APPROVAL
Valid to arrange one-way transportation for SOC containers to the most port.
Color
Color
Give us the Panton No. Any color for you.
Logo or slogan
Logo or slogan
Give us the hard copy and pay the lowest from USD60.00 for a container.
Production line
Production line
Our factory promotes lean production activities in an all-round way, opening the first step of forklift-free transportation and closing the risk of air and ground transportation injury in the workshop, also creating a series of lean improvement achievements such as streamlined production of container steel parts, etc. It is known as a “cost-free, cost-effective” model factory for lean production
 Output
Output
Every 3 mins to get a container from the automatic production line.
Dry Cargo Container: 180,000 TEU per year
Special & Non-standard Container: 3,000 units per year

Certificate

Certificate
Certificate
