Product description

Product Description

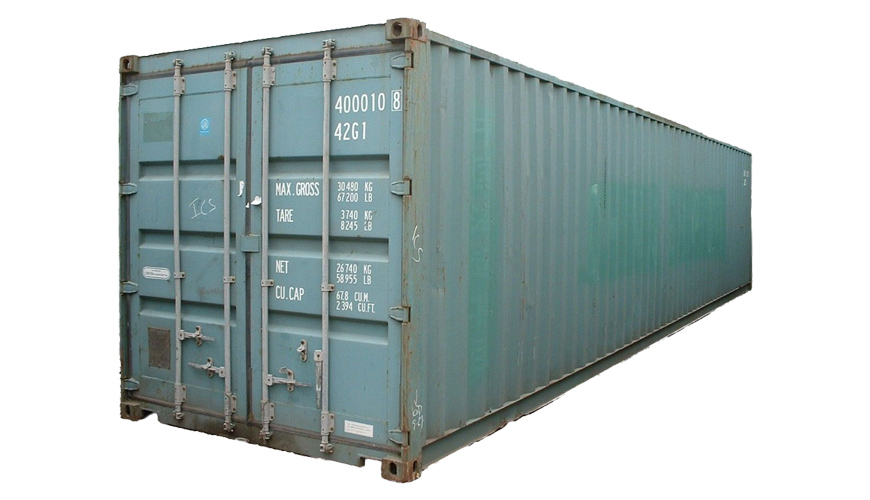

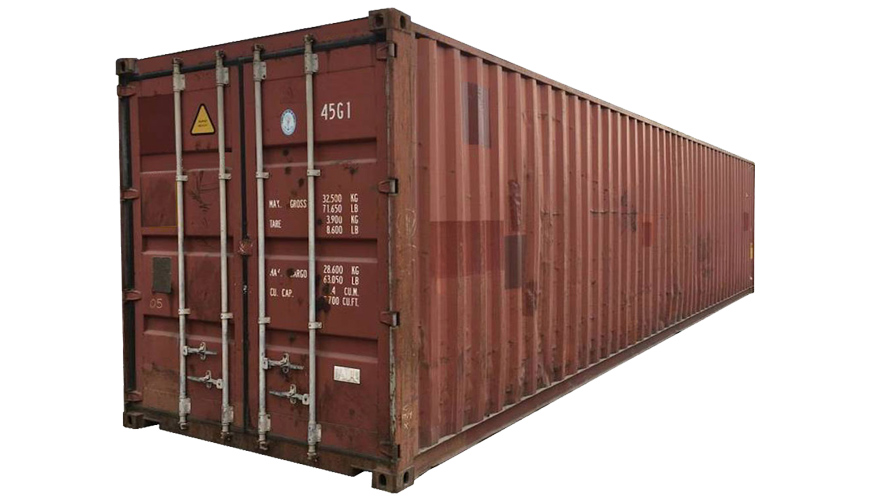

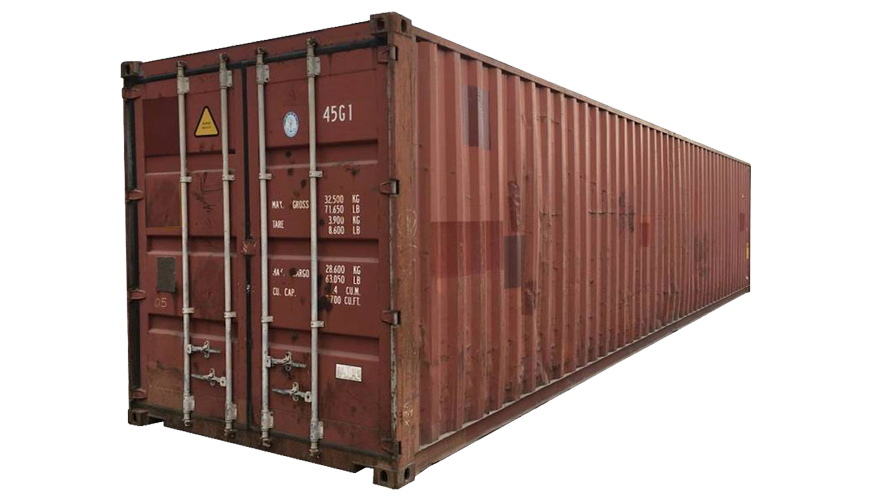

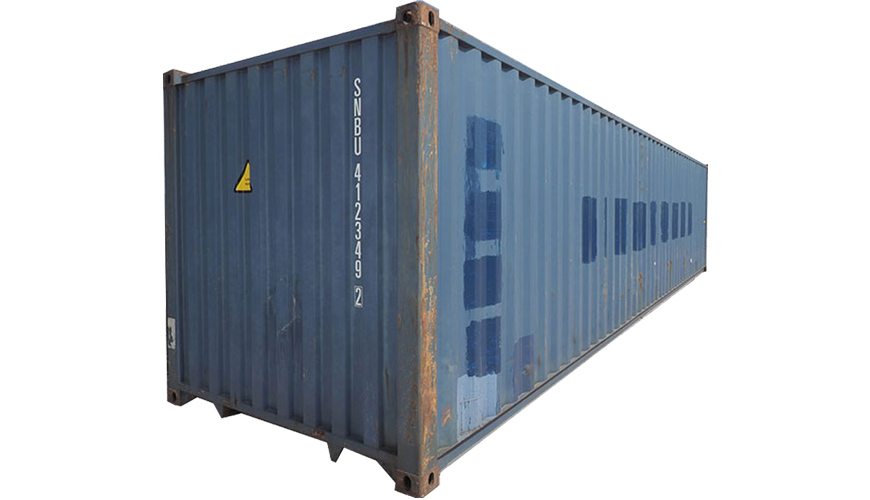

Hysun has used 20GP/40HQ container ON STOCK in Qingdao, Shanghai, Tianjin, Ningbo and Guangzhou port. Our used shipping container is Valid in Shanghai, Ningbo, Guangzhou, Qingdao.
All used shipping container checked by third party and issue report, and we would provide you the actual photo for view before shipped.

Valid pick up in Shanghai,Ningbo,Shenzhen, Guangzhou, Xiamen, Qingdao, Tianjin, etc.
Valid oneway to baseport.

Specification

  1. Product Name: ISO shipping container
  2. Place of Product: Shanghai, Ningbo, Guangzhou, Qingdao, China
  3. Modes of packing: SOC(shipper own container)
  4. External Dimensions (L x W x H)mm: 12192*2438*2591mm
  5. Internal Dimensions (L x W x H)mm: 12092*2352*2393mm
  6. Door Dimensions (W x H)mm: 2340×2280
  7. Max Gross Weight: 32500 KGS
  8. Tare Weight: 3650 KGS
  9. Inner capacity: 67.7 CBM

Maritime Container Material List

  1. Corner: ISO standard corner, 178x162x118mm
  2. Floor Beam for long side: Steel: CORTEN A, thickness: 4.0mm
  3. Floor Beam for short side: Steel: CORTEN A, thickness: 4.5mm
  4. Floor: 28mm, intensity: 7260kg
  5. Column: Steel: CORTEN A, thickness: 6.0mm
  6. Inner column for back side: Steel: SM50YA + channel steel 13x40x12
  7. Wall panel-long side: Steel: CORTEN A, thickness: 1.6mm+2.0mm
  8. Wall panel-short side: Steel: CORTEN A, thickness: 2.0mm
  9. Door Panel: Steel: CORTEN A, thickness: 2.0mm
  10. Horizontal beam for door: Steel: CORTEN A, thickness: 3.0mm for standard container and 4.0mm for high cube container
  11. Lockset: 4 set container lock bar
  12. Top Beam: Steel: CORTEN A, thickness: 4.0mm
  13. Top panel: Steel: CORTEN A, thickness: 2.0mm
  14. Paint: Inside wall paint thickness: 75µ Outside Wall paint thickness: 30+40+40=110uOutside Roof paint thickness: 30+40+50=120u Chassis paint thickness: 30+200=230u

More uses

Building a Home with Shipping ContainersOne of the most popular applications these days is to build your dream home with re-purposed Shipping Containers. Save time and
money with these highly adaptable units.
Industrial Storage is Easy With ContainersIndustrial Equipment Storage is perfectly suited for the Shipping Containers. With a marketplace full of easy add-on products that
make it quick and easy to adapt.

Packing&Shipping

Transport and ship with SOC style overworld. (SOC: Shipper own container)
