Product description

Product Description

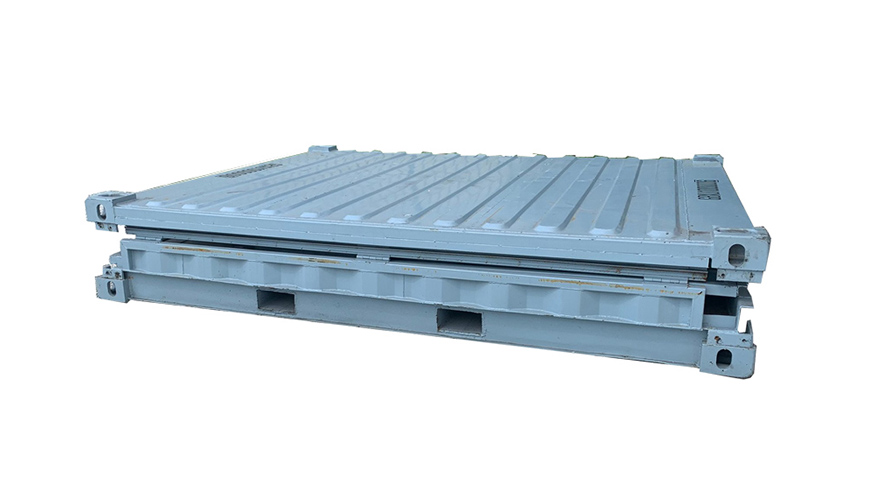

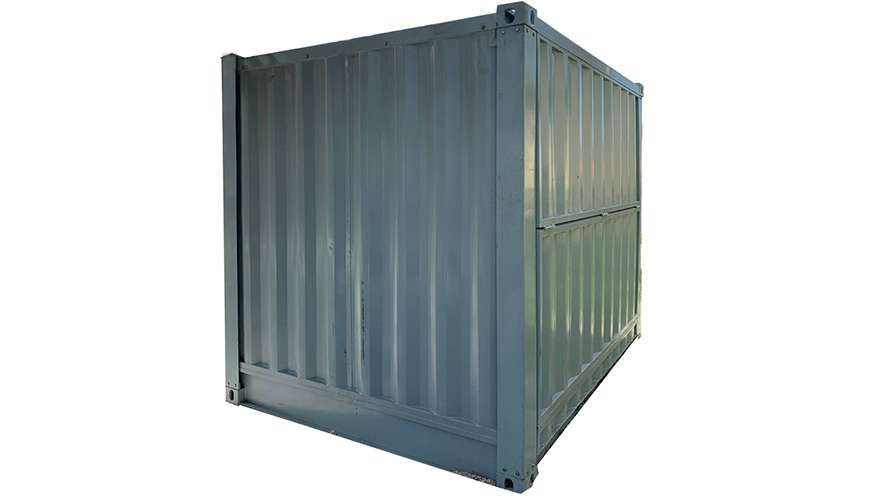

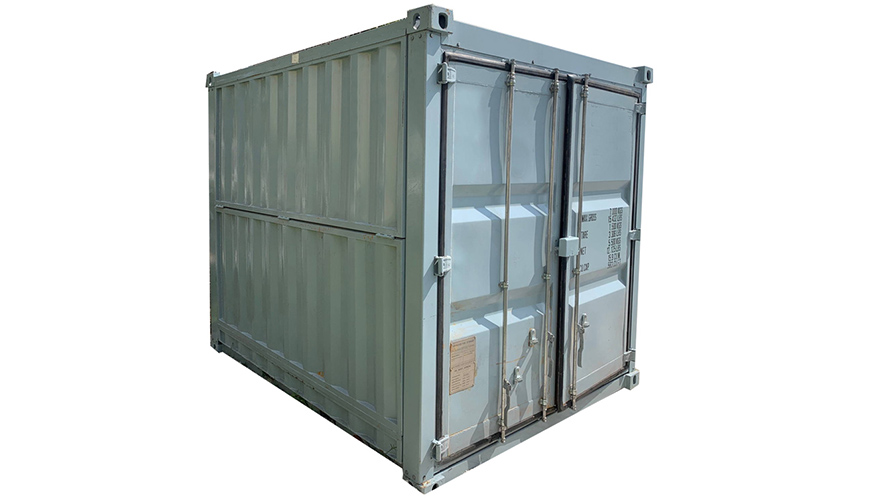

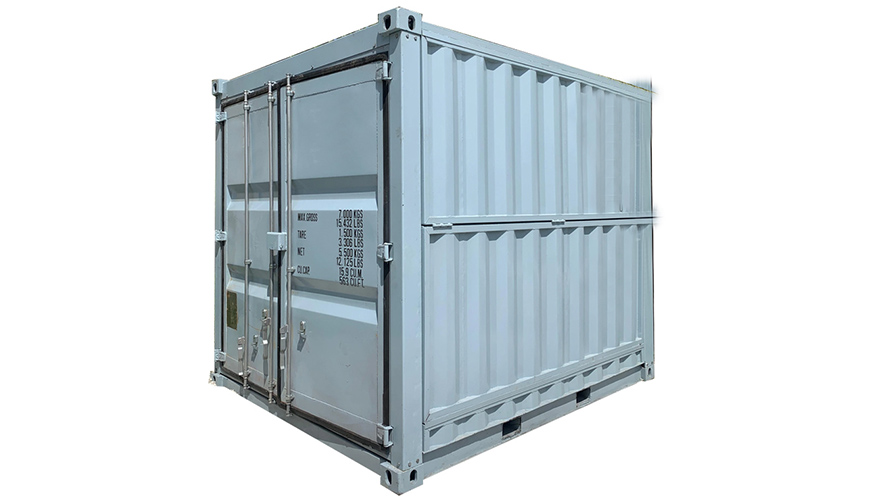

Product Namefolding shipping containerMax Gross Weight11300 KGS
Tare Weight1300 KGSPlace of ProductShanghai, China
inner capacity15.95 CBMModes of packingSOC(shipper own container)
External dimensions
3055x2438x2591mminternal dimensions2955*2352*2393mm

Details Images


External Dimensions(L x W x H)mm3055x2438x2591Internal Dimensions
(L x W x H)mm
Door Dimensions(L x H)mm2340×2280Inner capacity15.95 CBM
Tare Weight1300 KGSMax Gross Weight11300 KGS

Maritime Container Material List

 S/N Name Desc
1Corner ISO standard corner, 178x162x118mm
2Floor Beam for long side Steel: CORTEN A, thickness: 4.0mm
3Floor Beam for short side Steel: CORTEN A, thickness: 4.5mm
4Floor 28mm, intensity: 7260kg
5Column Steel: CORTEN A, thickness: 6.0mm
6Inner column for backside Steel: SM50YA + channel steel 13x40x12
7Wall panel-long side Steel: CORTEN A, thickness: 1.6mm+2.0mm
8Wall panel-short side Steel: CORTEN A, thickness: 2.0mm
9Door Panel Steel: CORTEN A, thickness: 2.0mm
10Horizontal beam for door Steel: CORTEN A, thickness: 3.0mm for standard container and 4.0mm for high cube container
11Lockset 4 set container lock bar
12Top Beam Steel: CORTEN A, thickness: 4.0mm
13Top panel Steel: CORTEN A, thickness: 2.0mm
14Paint Inside wall paint thickness: 75µ Outside Wall paint thickness: 30+40+40=110uOutside Roof paint thickness: 30+40+50=120u Chassis paint thickness: 30+200=230u

More uses

Industrial Storage is Easy With Containers
Industrial Equipment Storage is perfectly suited for Shipping Containers. With a marketplace full of easy add-on products that
make it quick and easy to adapt.
Building a Home with Shipping Containers
One of the most popular applications these days is to build your dream home with re-purposed Shipping Containers. Save time and
money with these highly adaptable units.
Containers Make Job Site Storage Easy and Safe
With readily available shipping containers for rent and sale in most markets, Shipping Containers are an ideal option for site
storage, and inventory cribs. Safe and secure for remote locations.
Retail Stores and Restaurants See Value in Containers
With the fast application of Shipping Containers to retail environments, and the added upward mobility of the units, more and more
businesses are opting to use containers to avoid the sunken costs.


Transport and ship with SOC style overworld. (SOC: Shipper own container)
