Product description

Product Description

HYSUN flat pack is a type of modular product designed from ISO shipping container and using steel frame and lightweight wall panels system.
Each Hysun flat pack consists of a top roof frame, bottom chassis frame, 4 posts and 14 pcs exchangeable wall panels.
Hysun flat pack containers can be flattened for easy transport. Hysun flat pack container has a lot of styles that can be optional.

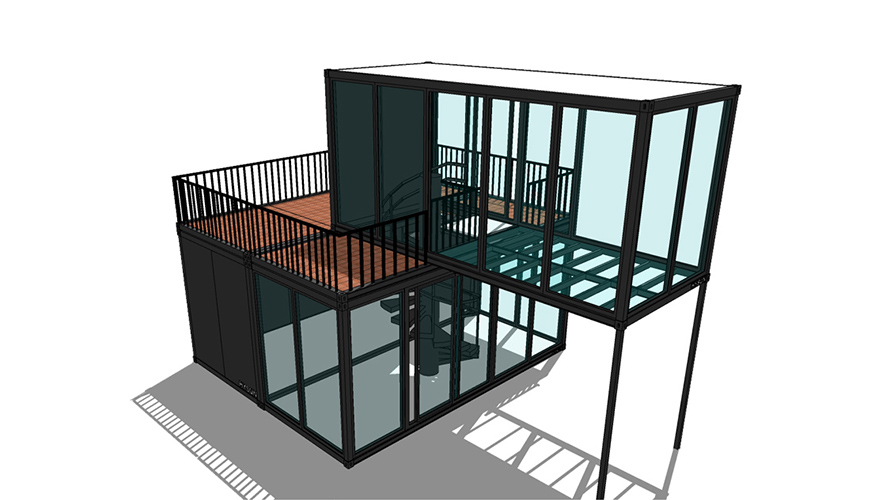

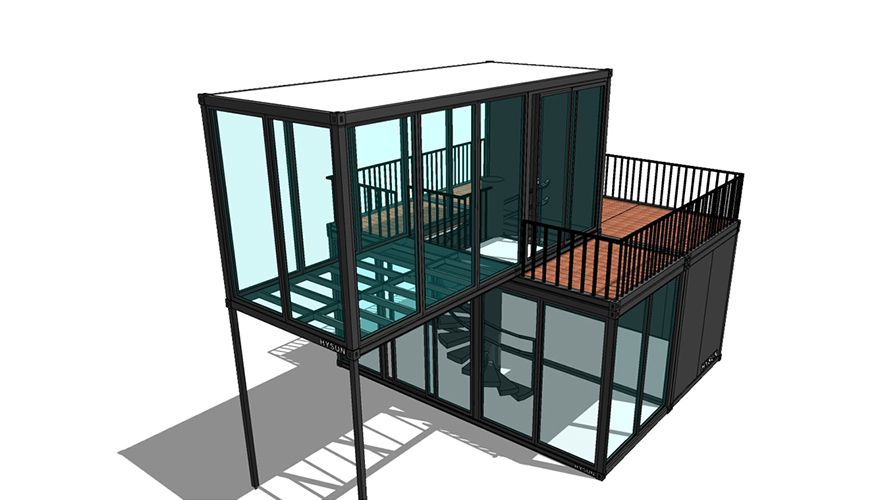

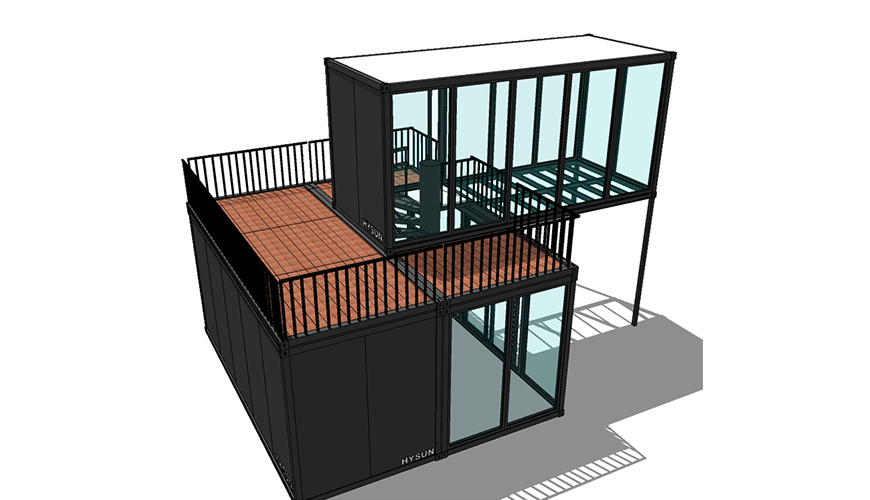

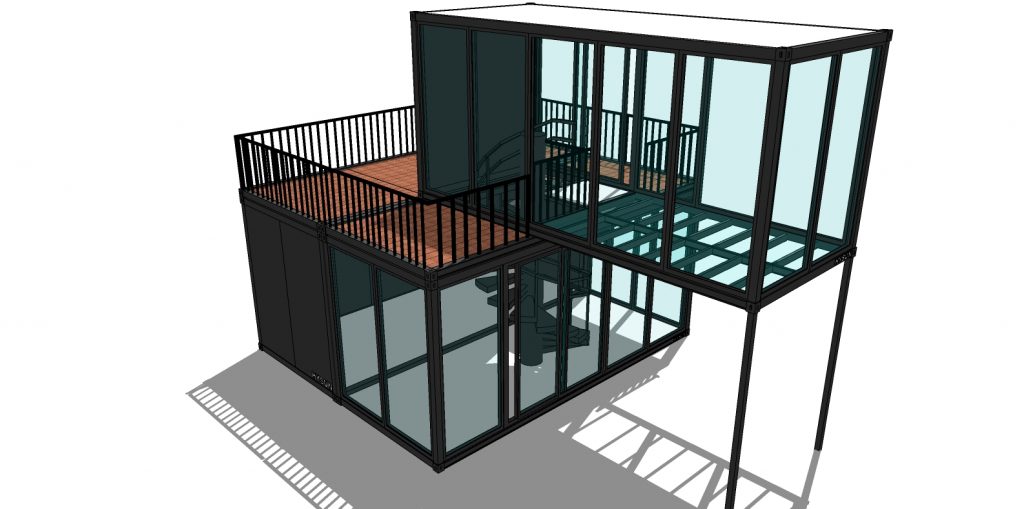

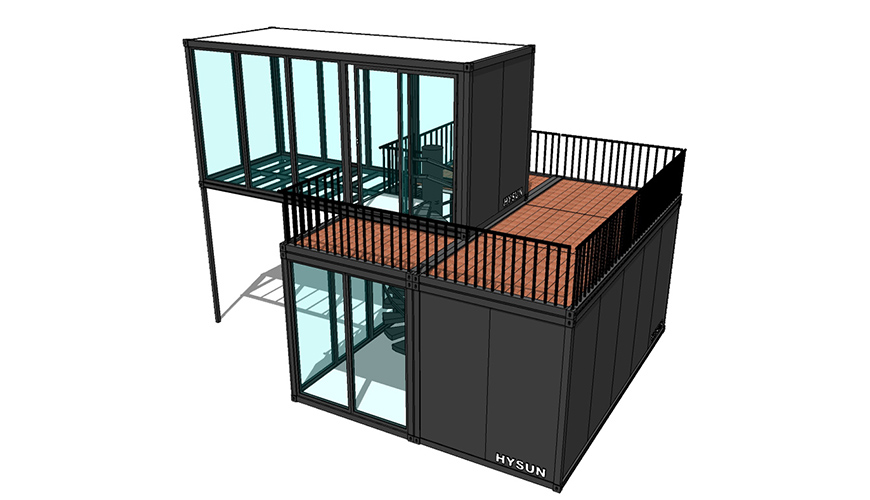

Details Images

detail
detail

Specification

Roof Load1.5kn/Sqm
Floor Load2.5kn/Sqm
Switches1 Set with 2K
LightTube Light or Ceiling Light, 2 PC
Outlet2 PCS
Distribute Box1 Set

Material List

  1. Chasis:
    1.1: Frame: Q235 steel, GI steel with 4 corners
    Size: 6000mm/5896*2500mm*160mm.
    Paint:2 times primer and 2 times face paint.
    Default color: white.
    1.2: Floor: 18mm fiber cement floor.
    Fireproofing: A.
    1.3: Flooring deco: 1.5mm vinyl sheet
  2. Roof & Ceiling:
    2.1: Frame: Q235 steel, GI steel with 4 corners
    Size: 6000mm/58962500mm170mm.
    Prulin: C804020*1.4mm
    Paint:2 times primer and 2 times face paint.
    Default color: white. And color can be customized.
    2.2: Roof sheet: 0.45 PPGI sheet roof covering
    2.3: insulation: 100mm glass wool.
    2.4: ceiling: 0.4mm corrugated PPGI steel.
  3. Post: Q235,3mm GI steel. Anti-rust, painted.
  4. Glass wall: Alu frame with glass for 3 side wall Glass: 5+12+5 double glazed
  5. External door: Glassdoor, hinge door. size:1700*2040mm, with lock. Size is valid to customize

Our advantages

  1. Flexible combination: stand-alone, or combined horizontally to create big open space, or stacked vertically up to 2 stores
  2. Fast assembling: averagely 4 workers can erect 1 container within 3 hours. The container also can be assembled in a factory and then transferred to the site.
  3. Easy transporting: 6 units can be packed into a 40HQ shipping container, which can save freight costs.

Packing & Delivery

6 Units/40HQ
The first picture is plan A: Top and bottom did, wallboard in the middle, with no fumigation plate sealed. Size: 5896*2500mm
The second picture is plan B: Top and bottom fixed, wall panels, doors, windows, and other separate placed, one 40HQ installed 6 sets. Size: 6000*2500mm

To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services will be provided.
