Product Description

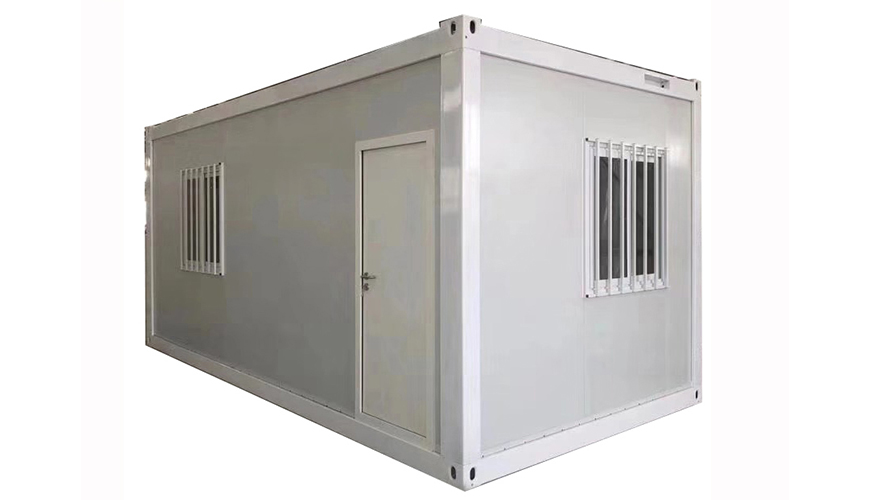

HYSUN flat pack is a type of modular product designed from ISO shipping container and using steel frame and lightweight wall panels system.
Each Hysun flat pack consists of a top roof frame, bottom chassis frame, 4 posts and 14 pcs exchangeable wall panels.
Hysun flat pack containers can be flattened for easy transport.

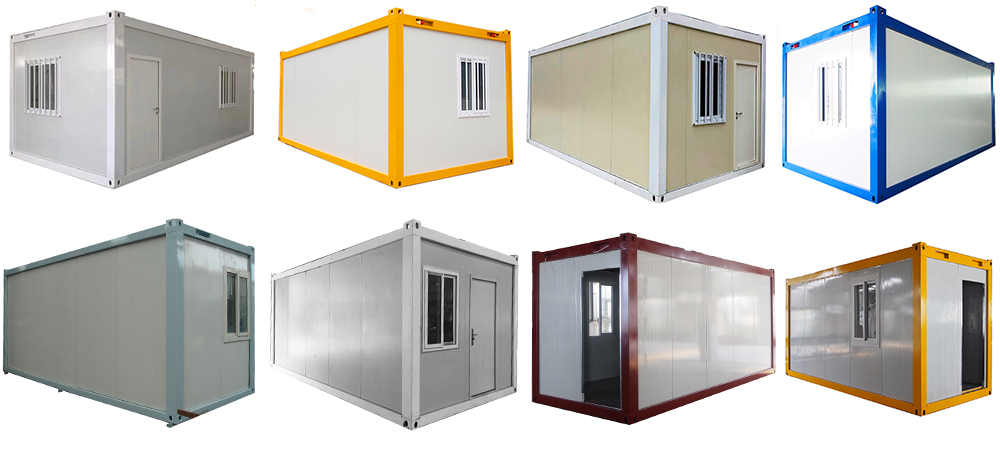

Hysun flat pack container has a lot of styles that can be optional.

type

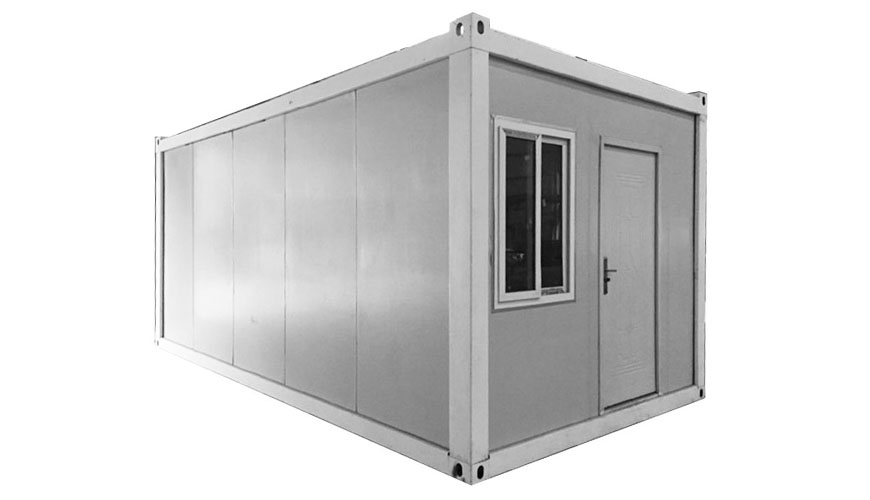

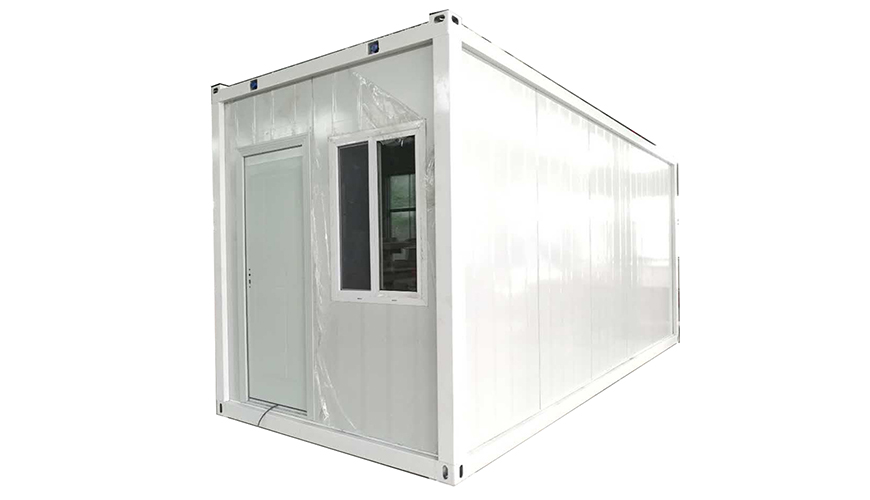

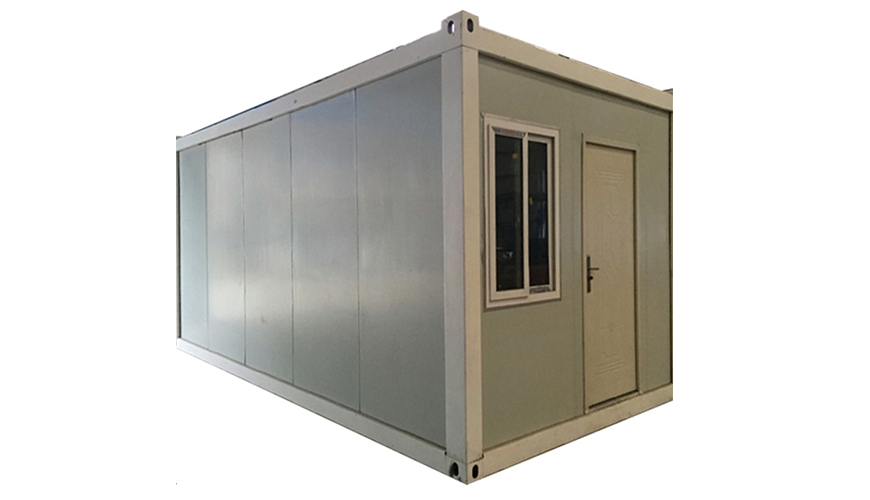

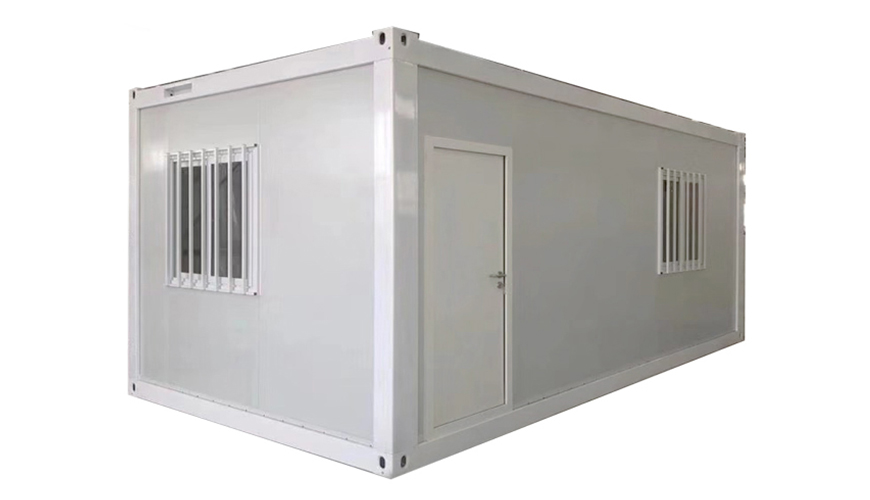

Details Images

detail
detail

Specification

Roof Load1.5kn/Sqm
Floor Load2.5kn/Sqm
Switches1 Set with 2K
LightTube Light or Ceiling Light, 2 PC
Outlet2 PCS
Distribute Box1 Set

Material List

  1. Chasis:
    1.1: Frame: Q235 steel, GI steel with 4 corners
    Size: 6000mm/5896*2500mm*160mm.
    Paint:2 times primer and 2 times face paint.
    Default color: white.
    1.2: Floor: 18mm fiber cement floor.
    Fireproofing: A.
    1.3: Flooring deco: 1.5mm vinyl sheet
  2. Roof & Ceiling:
    2.1: Frame: Q235 steel, GI steel with 4 corners
    Size: 6000mm/58962500mm170mm.
    Prulin: C804020*1.4mm
    Paint:2 times primer and 2 times face paint.
    Default color: white. And color can be customized.
    2.2: Roof sheet: 0.45 PPGI sheet roof covering
    2.3: insulation: 100mm glass wool.
    2.4: ceiling: 0.4mm corrugated PPGI steel.
  3. Post: Q235,3mm GI steel. Anti-rust, painted.
  4. External door:
    Steel door, size:970203550mm, with AB lock.
    Door leaf steel thickness: 0.4mm
    Frame steel thickness: 0.6mm
  5. 1: External wall panel: 50mm EPS/Rockwool sandwich panel with 0.35mm pre-coated GI steel sheet both sides.
    5.2: Internal wall panel: 50mm EPS/Rockwool sandwich panel with 0.35mm pre-coated GI steel sheet both sides.
  6. 1: Window: PVC sliding window, size:930*1100mm
    Glass: 5mm
    With steel security bar
    6.2: Toilet Window: PVC sliding window, size: 600*600mm, ready in the panel.
    Glass: 5mm
  7. Electrical system:
    7.1: Light-1: a fluorescent lamp with a double tube.
    7.2: Socket: 10A 5 holes socket*4,16A A/C socket*1
    CE,AS/NZ,UL.available
    7.3: Switch: 1K switch
    7.4: Distrubute box: 1 set
    7.5: Power connecting plug: 220V,50Hz,3P32A.
    Q’ty: 1 set
  8. Decoration strip
    8.1: Wall strip: PVC. White
    8.2: Ceiling trim: PVC.White
    8.3: Floor trim: PVC.
  9. Joint Accessories
    9.1: Bolt: M10, 50 pcs.
    9.2: Flooring cover: PPGI steel sheet
    9.3: Post cover: steel sheet
    9.4: watertight rubber sheet: for waterproofing work for the place combined

Features

1) Can be used as dormitory temporary hospital toilet office storage room etc
2) Can be installed in a short time assembled by bolts with a high intensity
3) Can be used repeatedly with a life span of more than 25 years
4) With supporting facilities such as washbasin shower air-conditioner, socket and so on;
5) The special design enables us to carry this container house as a whole without damages, so it’s quite suitable for movable projects.

Packing & Delivery

6 Units/40HQ
The first picture is plan A: Top and bottom did, wallboard in the middle, with no fumigation plate sealed. Size: 5896*2500mm
The second picture is plan B: Top and bottom fixed, wall panels, doors, windows, and other separate placed, one 40HQ installed 6 sets. Size: 6000*2500mm

To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services will be provided.
