Product description

Product Description

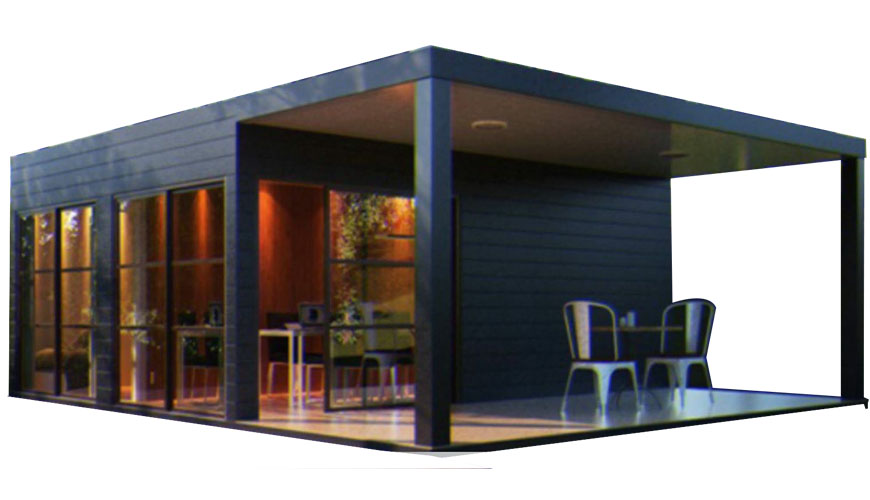

Item number: HY-A028
Size: L12125* W4885* H2790MM (Welcome to customize )

HY-A028.
HY-A028.

Specification

Flat-Pack
Flat-Pack
Warranty1 YEAR
After-sale ServiceOnline Technical Support, Onsite Training, Free spare parts
Project Solution CapabilityGraphic Design, 3D model design, total solution for projects
Application scenariosOutdoor
Place of OriginChina
Brand NameHysun
Model NumberHy-A229
UseHouse, Kiosk,Booth, Office, Shop
Product TypeSandwich Panel Houses
Desigh StyleModern
External size6055*2435*2790mm
Internal size5855*2235*2500mm
Roof load1.5KN/sqm
Floor load2.5KN/sqm
Wind load180km/h (Chinese standard)
Seismic fortification intensitymagnitudes 8
Suitable temperature scope-50°C~+50°C
Earthquake resistanceGrade 7

Material List

List
List
  1. Dimension: L6055*W2435*2790MM
  2. Steel structure: Cold rolled steel structure with corner casts and forklift pockets 90x256x2050mmAvailable size, 8ft x 10ft, 8ft x 16ft, 8ft x 20ft, 8ft x 24ft, 8ft x 30ft, 10ft x 20ft
  3. Wall panel Exterior Cladding: 0.5mm thick corrugated or flat galvanized coated steel sheet
  4. Wall panel Insulation: 60mm, 70mm, 80mm, 100mm
  5. Wall panel Internal Cladding:
    A- 9mm thick chipboard with Laminated E1 EmissionValued
    B-0.5mm thick galvanized and coated color steel sheet.
    Parallel compressive strength = 18.1 MPa;
    Formaldehyde emission ≤ 0.1mg/100g;
    Water expansion ratio = 0.2%;
    Low smoke and non-flammable;
    Flammability class A1 – non-combustible;
    Smoke density: low smoke emission;
  6. Floor System:
    3mm thick cold rolled & welded steel profiles;
    Subfloor: 0.5mm thick, galvanized steel sheet;
    Floor Board: 18mm magnesium(water resistant v 100);
    The board complies with the emission value E 1;
    Parallel compressive strength = 35.7 MPa;
    Formaldehyde emission ≤ 0.4mg/100g;
    1.5mm thick vinyl sheet;
    Flammability class B1 – hardly combustible;
    Smoke density class Q1 – low smoke emission;
    Welded seams.
  7. Fiber cement floor:
    Density: 1.26kg/m3 K= 0.18W/m*k;
    Waterproof, moisture content = 0.13%/m2
    Formaldehyde emission = 0.2 mg/ 100g;
    Deformation, parallel to the bending elasticity = 6055MPa
  8. Flooring Cover: 1.5mm thick vinyl sheet;     [ Pattern on option ]
  9. Roof Steel Frame: 4mm thick cold rolled & welded steel profiles
  10. Roof Cover:
    0.5mm thick galvanized sheet & double folded in the roof middle;
  11. Ceiling:
    A-50mm Steel Sandwich panel(Option 1);
    B-9mm chipboard(V20), White(Usual), insulation rock wool(Option2);    [ alternative ]
  12. Roof panel:
    A-4mm thick cold rolled & welded steel profiles, Screwed to the floor base frame and roof frame.
    B-3mm thick cold rolled & welded steel profiles, Screwed to the floor and roof frame. [ alternative ]
  13. Entrance door:
    Right or left hand hinged;
    Inward or outward opening;
    Steel frame with triangular wrap-around sealing;
    Door blade with galvanized steel sheets on both sides; Insulated with honeycomb;
    Aluminum or Steel type;
    Regular size: 870*2040mm, 870*1995mm.      [ 1 pc ]
  14. Window:
    PVC frame with insulated glazing and
    Color: white;
    Tilt & turn mechanism or sliding;
    Regular size: 800*1100mm.
  15. Shutter: integrated Aluminum roller shutters;     [ ON OPTION ]
  16. Electrical system:
    Included:Waterproof Industrial Plug: 2 pcs, Use the power directly
    Distribute Box: 1 set
    Outlet: 2 pcs
    Light: tube light or ceiling light, 2 pcs
    Switches: 1 set with 2K
  17. Electrical Certification: CE,AS/NZ,UL.  [ According client’s demand ]

Features

feature
feature

Hysun Flat Pack containers are nothing more than redesigned maritime containers to meet the expectations and architectural needsof your buyer and designer.
Flat pack containers can bring the infinite advantages:
1. Superior quality.
2. Time saving in construction.
3. Great savings of money.
4. Harmless construction.
5. Resistance and security.

Packing & Delivery

4 units/20GP, 8 units/40HQ
Load : 4 kits shipped as 1*20GP
Be noted: we have shipping certification from  classification society

package and load
