Product Description

Item Number: HY-A229
Size: L12125* W4885* H2790MM (Welcome to customize )
Layout: One kitchen, one seat area and one Terrance
Rooftop: On optional

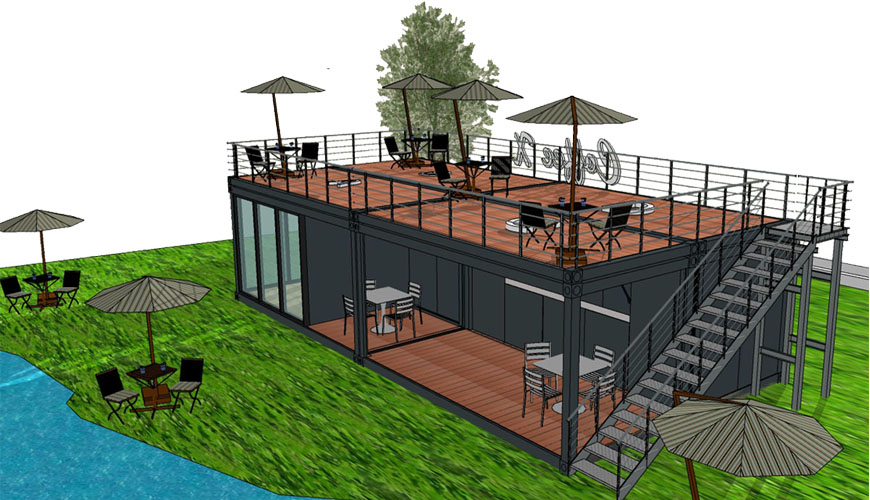

HY-A229-2
HY-A229-2

Specification

itemvalue
Warranty1 YEAR
After-sale ServiceOnline Technical Support, Onsite Training, Free spare parts
Project Solution CapabilityGraphic Design, 3D model design, total solution for projects
Application scenariosOutdoor
Place of OriginChina
Brand NameHysun
Model NumberHy-A229
UseHouse, Kiosk, Booth, Office, Shop
Product TypeSandwich Panel Houses
Design StyleModern
External size6055*2435*2790mm
Internal size5855*2235*2500mm
Roof load1.5KN/sqm
Floor load2.5KN/sqm
Wind load180km/h (Chinese standard)
Seismic fortification intensitymagnitudes 8
Suitable temperature scope-50°C~+50°C
Earthquake resistanceGrade 7

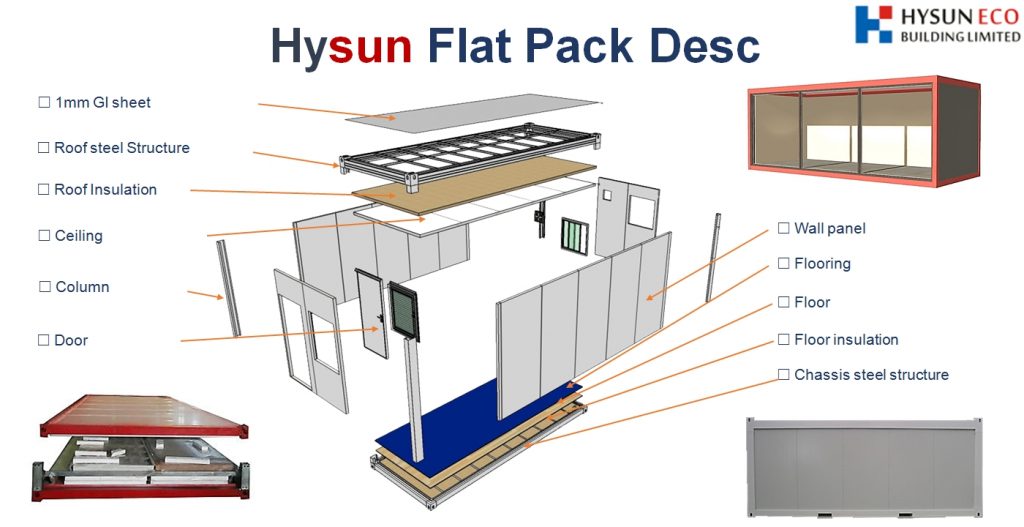

Material List

List
  1. Dimension: L6055*W2435*2790MM
  2. Steel structure: Cold rolled steel structure with corner casts and forklift pockets 90x256x2050mmAvailable size, 8ft x 10ft, 8ft x 16ft, 8ft x 20ft, 8ft x 24ft, 8ft x 30ft, 10ft x 20ft
  3. Wall panel Exterior Cladding: 0.5mm thick corrugated or flat galvanized coated steel sheet
  4. Wall panel Insulation: 60mm, 70mm, 80mm, 100mm
  5. Wall panel Internal Cladding:
    A- 9mm thick chipboard with Laminated E1 EmissionValued
    B-0.5mm thick galvanized and coated color steel sheet.
    Parallel compressive strength = 18.1 MPa;
    Formaldehyde emission ≤ 0.1mg/100g;
    Water expansion ratio = 0.2%;
    Low smoke and non-flammable;
    Flammability class A1 – non-combustible;
    Smoke density: low smoke emission;
  6. Floor System:
    3mm thick cold rolled & welded steel profiles;
    Subfloor: 0.5mm thick, galvanized steel sheet;
    Floor Board: 18mm magnesium(water resistant v 100);
    The board complies with the emission value E 1;
    Parallel compressive strength = 35.7 MPa;
    Formaldehyde emission ≤ 0.4mg/100g;
    1.5mm thick vinyl sheet;
    Flammability class B1 – hardly combustible;
    Smoke density class Q1 – low smoke emission;
    Welded seams.
  7. Fiber cement floor:
    Density: 1.26kg/m3 K= 0.18W/m*k;
    Waterproof, moisture content = 0.13%/m2
    Formaldehyde emission = 0.2 mg/ 100g;
    Deformation, parallel to the bending elasticity = 6055MPa
  8. Flooring Cover: 1.5mm thick vinyl sheet;     [ Pattern on option ]
  9. Roof Steel Frame: 4mm thick cold-rolled & welded steel profiles
  10. Roof Cover:
    0.5mm thick galvanized sheet & double folded in the roof middle;
  11. Ceiling:
    A-50mm Steel Sandwich panel(Option 1);
    B-9mm chipboard(V20), White(Usual), insulation rock wool(Option2);    [ alternative ]
  12. Roof panel:
    A-4mm thick cold rolled & welded steel profiles, Screwed to the floor base frame and roof frame.
    B-3mm thick cold rolled & welded steel profiles, Screwed to the floor and roof frame. [ alternative ]
  13. Entrance door:
    Right or left hand hinged;
    Inward or outward opening;
    Steel frame with triangular wrap-around sealing;
    Door blade with galvanized steel sheets on both sides; Insulated with honeycomb;
    Aluminum or Steel type;
    Regular size: 870*2040mm, 870*1995mm.      [ 1 pc ]
  14. window:
    frame with insulated glazing and
    Color: white;
    Tilt & turn mechanism or sliding;
    Regular size: 800*1100mm.
  15. shutter: integrated Aluminum roller shutters;     [ ON OPTION ]
  16. Electrical system:
    Included: Waterproof Industrial Plug: 2 pcs, Use the power directly
    Distribute Box: 1 set
    Outlet: 2 pcs
    Light: tube light or ceiling light, 2 pcs
    Switches: 1 set with 2K
  17. Electrical Certification: CE,AS/NZ,UL.     [ According client’s demand ]

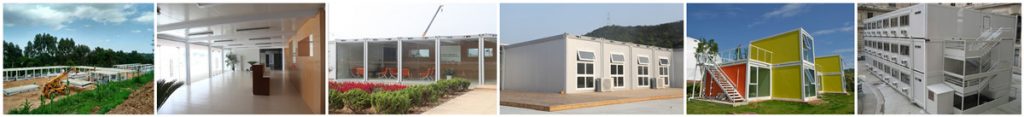

Features

feature
feature

Modular: All materials have been ready in the factory. 90% work-ready.
Fast: 3-4 hours for installation by 4 workers.
Green: None construction waste caused. Can use several times
Free space: can combine to big space in vertical and horizontal, also available in load to 3 layers building

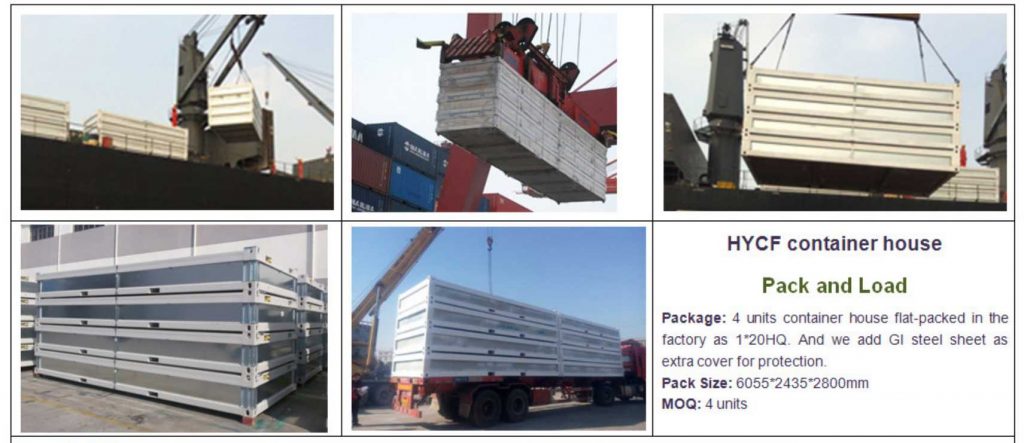

Packing & Delivery

packing

4 units/20GP, 8 units/40HQ
Load: 4 kits shipped as 1*20GP
Be noted: we have shipping certification from the classification society
